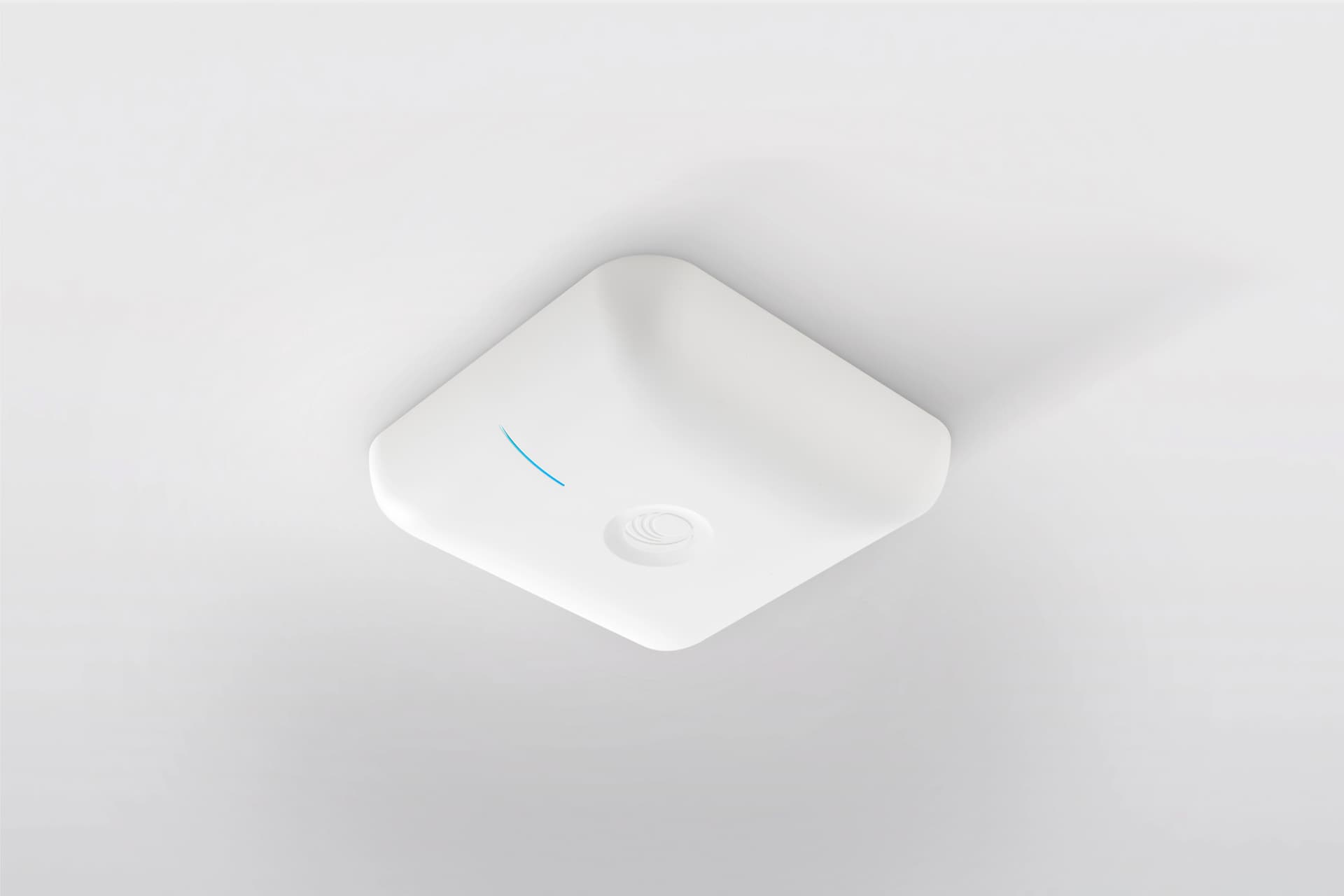

Cambium Networks PL-E410X00A-RW cnPilot E410 Indoor Wi-Fi Access Point
Cambium Networks PL-E410X00A-RW cnPilot E410 Indoor Wi-Fi Access Point
Cambium Networks PL-E410X00A-RW cnPilot E410 Indoor Wi-Fi Access Point
Cambium Networks

Cambium Networks PL-E410X00A-RW cnPilot E410 Indoor Wi-Fi Access Point

Access Point
MPN:PL-E410X00A-RW
SKU:CAMB0023

Product Highlights

  • Cambium Networks PL-E410X00A-RW cnPilot E410 Indoor Wi-Fi Access Point
Specifications
Mounting PositionDesktop, Wall mount, included T-bar mount 14 mm x 24 mm x 38 mm (0.55 in x 0.94 in x 1.5 in) Ceiling Tile mount included Kensington lock slot
ColourBlack
Led IndicatorsSingle Tri-color LED (amber, blue, green)
Ethernet TechnologyOne IEEE Gigabit Ethernet auto sensing
Operating Temperature0 deg C to 50 deg C
Wifi AntennaInternal omni-directional 2.4 GHz: 5.24 dBi 5 GHz: 5.47 dBi
Weight0.38 kg
CertificationWi-Fi Alliance 802.11 a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950 Ul2043
Radios1 x 5 GHz radio (802.11 a/n/ac Wave 2), 2x2 1 x 2.4 GHz (802.11 b/g/n), 2X2 SU-MIMO / MU-MIMO: 2 streams
Power802.3af powered device Typical load: 9 W, Max: 11.5 W
Country Of OriginChina
InterfaceHTTP / HTTPS web interface, SSL, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP
Storage Temperature40 deg C to 70 deg C
Model NamecnPilot E410
Humidity95% RH non-condensing
Model NumberPL-E410X00A-RW
Dimension6.69 x 6.69 x 1.61 in
Wifi Connectivity802.11 a/b/g/n/ac
BrandCambium Networks
Ssid Types SupportedWPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Product TypeAccess Point
  • Reliable Indoor Wi-Fi Solution: The Cambium Networks cnPilot E410 delivers reliable indoor wireless connectivity, ensuring seamless internet access for businesses, hotels, and educational institutions.
  • High Performance: Equipped with 2x2 MIMO technology, it supports concurrent dual-band operation (2.4 GHz and 5 GHz) with data rates of up to 1.3 Gbps, providing high-speed connectivity for multiple users and devices.
  • Optimized Coverage: Features an omni-directional antenna design for extended coverage and minimized dead zones, ensuring consistent and reliable Wi-Fi signal throughout the premises.
  • Easy Deployment and Management: Simplifies deployment and management with cloud-based cnMaestro management platform, allowing IT administrators to monitor, configure, and troubleshoot Wi-Fi networks remotely.
  • Secure Connectivity: Includes advanced security features such as WPA2-Enterprise encryption and secure guest access, protecting sensitive data and ensuring network integrity.
  • Scalable Solution: Designed for scalability, it supports up to 256 client devices per access point, making it ideal for growing businesses and expanding network infrastructures.
  • Energy-Efficient Design: Operates with low power consumption, reducing energy costs and environmental impact while maintaining high performance and reliability.
  • Sleek and Discreet Design: Features a compact and aesthetic design that blends seamlessly into any indoor environment, enhancing the overall aesthetics without compromising performance.

    • FAQs:


    Q: What is the maximum data rate supported by the Cambium Networks cnPilot E410?
    A: The cnPilot E410 supports data rates of up to 1.3 Gbps, providing high-speed Wi-Fi connectivity for demanding applications and multiple users.

    Q: Can the cnPilot E410 handle both 2.4 GHz and 5 GHz bands simultaneously?
    A: Yes, it supports concurrent dual-band operation, allowing devices to connect to either 2.4 GHz or 5 GHz bands based on their capabilities and network conditions.

    Q: How many client devices can the cnPilot E410 support?
    A: It can support up to 256 client devices per access point, making it suitable for environments with high device density and network traffic.

    Q: Is the cnPilot E410 easy to manage remotely?
    A: Yes, it can be managed remotely via the cnMaestro management platform, enabling IT administrators to monitor, configure, and troubleshoot Wi-Fi networks from anywhere.

    Q: What security features does the cnPilot E410 offer?
    A: It includes WPA2-Enterprise encryption and secure guest access, ensuring secure connectivity and protecting against unauthorized access to the network.
