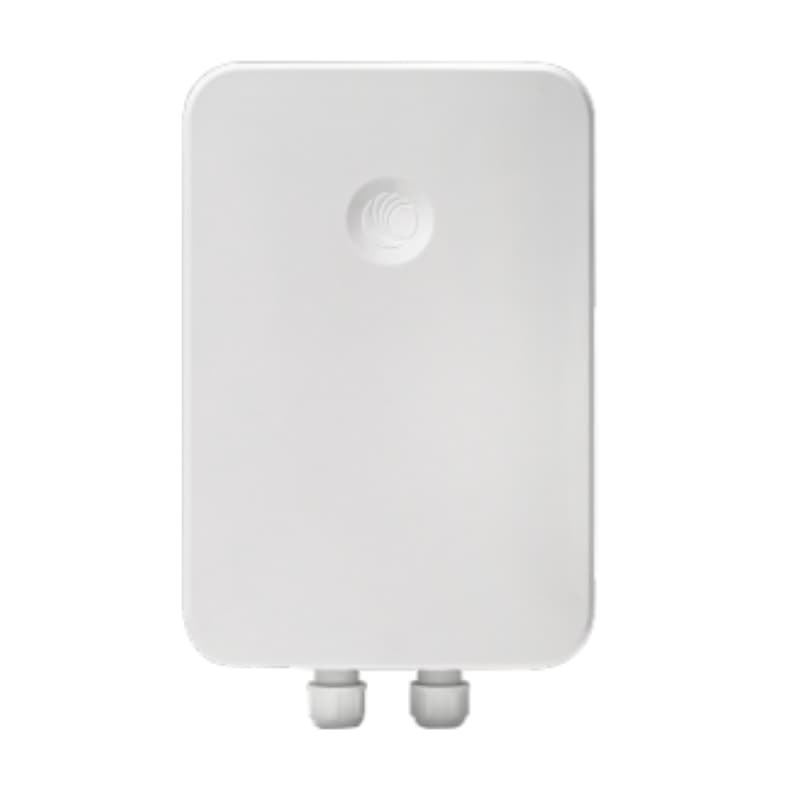

Cambium Networks PL-E700X00A-RW Outdoor (ROW) 802.11ac Wave 2, 2x2/4x4, Access Point

Cambium Networks

Cambium Networks PL-E700X00A-RW Outdoor (ROW) 802.11ac Wave 2, 2x2/4x4, Access Point

Access Point

MPN:PL-E700X00A-RW

SKU:CAMBIUM285

Product Highlights

Cambium Networks PL-E700X00A-RW Outdoor (ROW) 802.11ac Wave 2
2x2/4x4
Access Point

Specifications

General

Brand

Cambium Networks

Certification

Wi-Fi Alliance 802.11a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950 UL2043

Colour

Black

Country Of Origin

China

Humidity

95% RH non-condensing

Interface

HTTP / HTTPS web interface, SSH, Telnet SNMP V1, V2, V3 Syslog, SNMP traps, NTP

Kensington Lock

Yes

Led Indicators

Two single color status LED

Model Name

E700

Model Number

PL-E700X00A-RW

Operating Temperature

40C to 65C

Product Type

Access Point

Wlan

512 clients, 32 SSIDs (16 per radio) WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF

Processor

Frequency Range

Wide Band Operation 49106200 MHz

Memory

Storage Temperature

40C to 70C

Connectivity

Ethernet Technology

2 IEEE Gigabit, auto sensing 1 port with Cambium 30V or 48V PoE Out

Networking

NAT, NAT logging firewall, DOS protection, L2/L3/DNS ACL, DHCP server, DHCP Relay option 82 LLDP, IGMP v1, v2 VLAN Pooling, RADIUS attribute VID VLAN per SSID, per user Integrated WIDS (wireless intrusion detection)

Wifi Antenna

Internal omni-directional 2.4 GHz: 8 dBi 5 GHz: 8 dBi

Wifi Connectivity

802.11 a/b/g/n/ac

Physical

Dimension

12.4 in x 8.46 in x 2.6 in

Weight

1,700g (3.75 lbs)

Width

Channel Width :20 | 40 | 80

Product Manuals

No manuals available for this product

Description

Product Details

High-Performance Outdoor Wi-Fi: The Cambium PL-E700X00A-RW delivers robust outdoor Wi-Fi connectivity with 802.11ac Wave 2 technology.

Flexible Configuration: Supports both 2x2 MIMO and 4x4 MIMO configurations, providing flexibility based on deployment needs.

Extended Coverage: Ideal for outdoor environments such as parks, campuses, and municipal areas, ensuring broad coverage and reliable connectivity.

Weather-Resistant Design: Built to withstand harsh weather conditions, ensuring durability and continuous operation in outdoor settings.

High Throughput: Offers high data transfer rates, supporting bandwidth-intensive applications and ensuring fast internet speeds.

Scalable Solution: Scalable to support growing network demands, making it suitable for expanding outdoor Wi-Fi deployments.

Advanced Security: Features advanced security protocols to protect against unauthorized access and ensure data privacy.

Remote Management: Compatible with cnMaestro cloud management for centralized monitoring, configuration, and firmware updates.

FAQs

Frequently Asked Questions

2x2 MIMO supports two streams of data transmission, while 4x4 MIMO supports four streams, providing higher throughput and improved performance in high-density environments.

Yes, it is designed with a weather-resistant housing to withstand varying weather conditions, ensuring reliable operation outdoors.

Yes, it supports mesh networking, allowing for easy deployment and extension of Wi-Fi coverage without additional cabling.

It is commonly used in outdoor environments such as parks, stadiums, and campuses to provide high-speed Wi-Fi access to users.

Yes, it supports cnMaestro cloud management for centralized management, monitoring, and troubleshooting of the wireless network.
