Cambium Networks

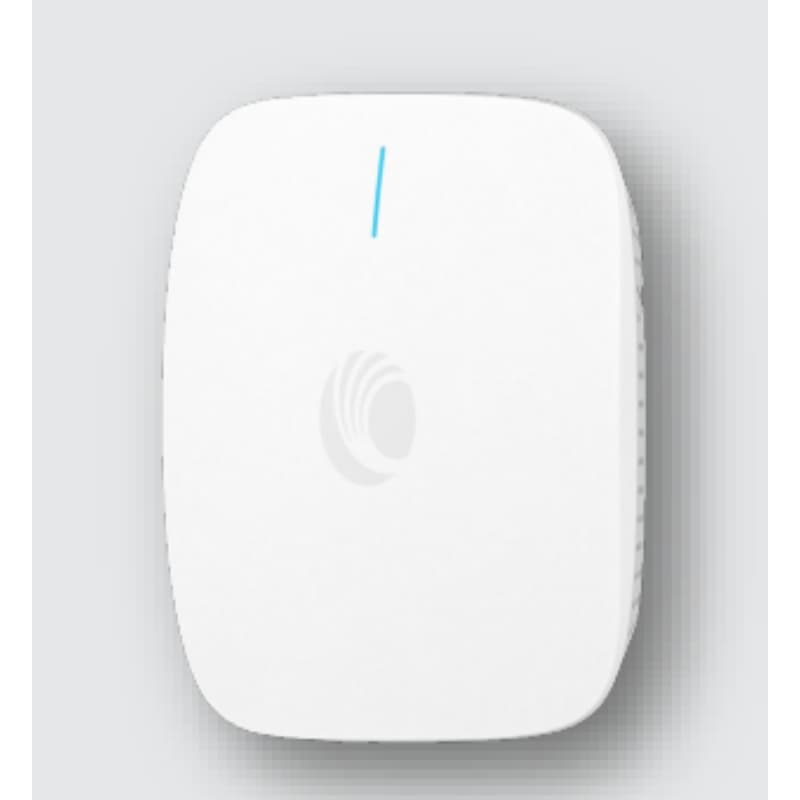

Cambium Networks XV2-21X0A00-RW Indoor Dual Radio
MPN:
XV2-21X0A00-RW
SKU:
CAMBIUM087
Networkings
Recommended For You
Beta
Buy it with
Beta
Specifications
LED Indicators
Multi-color status LEDs, dimmable, on/off
Ambient Air Temperature Operation
0 degree C to 50 degree C
Security
WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Service and Support
Deep Packet Inspection (DPI) Application Visibility and Control EasyPass Access Service
Operational Modes
cnMaestro Cloud, cnMaestro on-premises, Standalone AP
WLAN
512 concurrent clients per Access Point, 32 SSIDs (16 SSIDs per radio) WPA3, WPA3 SAE, WPA3 Enterprise, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Encryption Authentication
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
Operating Temperature
0�C to 50�C
Wi-Fi antenna
5 GHz 6 dBi
Networking
TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
Country of origin
China
Power
Max power 21W, 802.3at powered device 15.4W (802.3af) operation with reduced function settings Typical 11W (USB disabled)
Site to Site VPN Tunnels
L2TPv2, L2GRE, PPPoE
Throughput
1.77 Gbps aggregate data rate 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps
MESH
Multi-hop, either band
Accounting
RADIUS accounting, load balancing AAA servers, Dynamic Authorization COA, DM
Radios
5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2
Weight
475g (1.05 lb)
Integration
Microsoft Azure and Google G Suite SSO integration
Wifi Features
802.11a/b/g/n/ac Wave 2/ax
Integrated antenna
5 GHz 6 dBi, Omni, 2.4 GHz 5 dBi , Omni
Captive Portal
Web page redirect, landing page, redirect to internal or external server, landing page and authentication, Client isolation per SSID, per network, Client rate limiting per SSID, EasyPass, Guest Ambassador,, Click-through authentication, Microsoft Azure and Google G Suite SSO integration
Certification
Wi-Fi Alliance, Passpoint 3.0,
802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, FCC, IC,
ETSI, CE, EN 60601-1-2, IEC60950,
IEC62368, UL2043, EN 61373
Mounting Type
Wall or ceiling, T-bar with included, locking bracket, ceiling tile plate
Storage temperature
40�C to 70�C
Model Name
xv2-21x
Ports
1 x IEEE 10/100/1000 Mbps
Humidity
95% RH non-condensing
Model Number
XV2-21X0A00-RW
Dimension
6.1 in x 6.1 in x 1.46 in
WiFi connectivity
802.11 a/b/g/n/ac Wave 2/ax
Maximum EIRP
5 GHz 31 dBm 2.4 GHz 29 dBm Antenna Gain- 5 GHz 6 dBi, Omni 2.4 GHz 5 dBi, Omni
Brand
Cambium Networks
Product Type
Indoor ACCESS POINT
Description
FAQs:
Q: What is the significance of WiFi 6 technology?
A: WiFi 6 technology offers faster speeds, increased capacity, and improved efficiency, providing seamless connectivity for bandwidth-intensive applications and IoT devices.
Q: Can the Cambium Networks XV2-21X0A00-RW Access Point operate on both 2.4 GHz and 5 GHz bands simultaneously?
A: Yes, the dual-radio configuration allows simultaneous operation on both 2.4 GHz and 5 GHz bands, ensuring optimal coverage and throughput for all wireless devices.
Q: How does the 2x2 MIMO technology benefit wireless performance?
A: The 2x2 MIMO technology optimizes wireless performance by transmitting and receiving data over multiple streams, resulting in improved coverage and reliability across the network.
Q: What security features are included with the Cambium Networks XV2-21X0A00-RW Access Point?
A: The access point offers advanced security features such as WPA3 encryption, secure boot, and secure management interfaces to protect the network from potential threats.
Q: Is the Cambium Networks XV2-21X0A00-RW Access Point compatible with existing network infrastructure?
A: Yes, the access point supports Gigabit Ethernet connectivity, ensuring seamless integration with existing network infrastructure and supporting data-intensive applications with ease.
