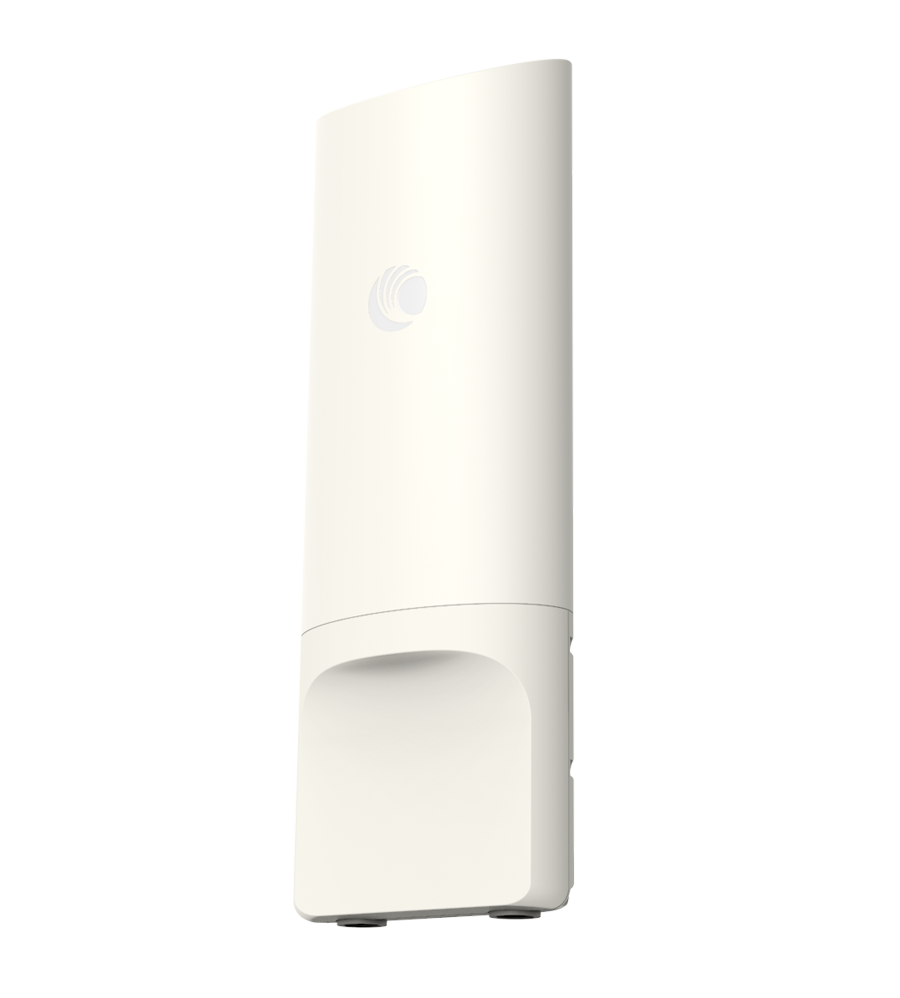

Cambium Networks XV2-2T0XA00-RW Outdoor Dual radio
Cambium Networks XV2-2T0XA00-RW Outdoor Dual radio
Cambium Networks

Cambium Networks XV2-2T0XA00-RW Outdoor Dual radio

Accessories
MPN:XV2-2T0XA00-RW
SKU:CAMBIUM276

Product Highlights

  • Cambium Networks XV2-2T0XA00-RW Outdoor Dual radio
Specifications
ColourCyan
Service SupportDeep Packet Inspection (DPI) Application Visibility and Control EasyPass Access Service
SecurityWPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Wlan512 concurrent clients per Access Point, 32 SSIDs (16 SSIDs per radio) WPA3, WPA3 SAE, WPA3 Enterprise, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Operational ModescnMaestro Cloud, cnMaestro on-premises, Standalone AP
Weight800 g
Integrated Antenna5 GHz 9.3 dBi, Omni, 2.4 GHz 5.3 dBi, Omni
Wifi Features802.11 a/b/g/n/ac Wave 2/ax
CertificationWi-Fi Alliance 802.11 a/b/g/n/ac/ax,FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4- 2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
MeshMulti-hop, either band
Throughput1.77 Gbps aggregate data rate 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps
Radios5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2
Encryption Capability802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS,EAP-TLS MAC authentication to local database or external RADIUS
NetworkingTCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
PowerMax power 21W, 802.3at powered device 15.4W (802.3af) operation with reduced function settings Typical 11W (USB disabled)
Country Of OriginChina
Mounting TypeWall or ceiling, T-bar with included, locking bracket, ceiling tile plate
Model NameOutdoor Dual radio
Ports1 x IEEE 10/100/1000/2500 Mbps, Auto sensing MDIX, 1 x USB 2.0
Wlan Bluetooth512 clients, 16 SSIDs WPA3, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
Maximum Eirp5 GHz 31 dBm 2.4 GHz 29 dBm Antenna Gain- 5 GHz 6 dBi, Omni 2.4 GHz 5 dBi, Omni
BrandCambium Networks
Product TypeNetworking
  • Reliable Outdoor Connectivity: Experience robust wireless performance with the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio.
  • Dual Radio Capability: Supports simultaneous operation on multiple frequencies, optimizing network efficiency.
  • Extended Coverage: Ensures broad coverage area, ideal for outdoor deployments in challenging environments.
  • High Throughput: Delivers high data throughput for seamless streaming and data-intensive applications.
  • Weatherproof Design: Built to withstand harsh weather conditions, ensuring durability and longevity.
  • Advanced Security Features: Protects against unauthorized access and potential network threats.
  • Easy Installation: Simplifies deployment with straightforward setup and configuration.
  • Scalable Solution: Easily expand your network to accommodate growing business needs without compromising performance.

    • FAQs:


    Q: What frequencies does the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio support?
    A:The XV2-2T0XA00-RW supports [insert frequencies], enabling flexible deployment options for varied network environments.

    Q: Is the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio suitable for extreme weather conditions?
    A:Yes, it features a weatherproof design, ensuring reliable performance in harsh outdoor environments.

    Q: Can the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio handle high data traffic?
    A:Absolutely, it provides high throughput capabilities, ideal for applications requiring intensive data transfer.

    Q: How easy is it to install the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio?
    A:Installation is straightforward, simplifying deployment and reducing setup time.

    Q: What security features does the Cambium Networks XV2-2T0XA00-RW Outdoor Dual Radio offer?
    A:It includes advanced security features to safeguard your network against unauthorized access and potential threats.
