Specifications
General
Brand
HPE Aruba
Colour
Classic Black
Country Of Origin
China
Differentiator

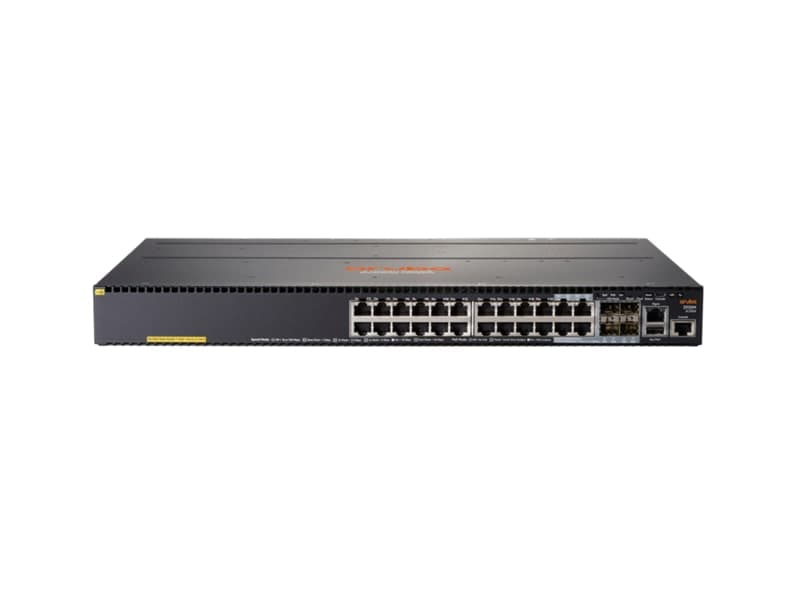

Powerful and flexible high density 1U 24-port PoE+ access switch supporting up to 1440W of PoE. This model has 24x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This model does support PoE/PoE+ with a Power over Ethernet budget of up to 1440 Watts based on selected power supplies. Can take up to two power supplies
Heat Dissipation
150 BTU/hr 162 kJ/hr
Latency Timing
1000 Mb Latency: < 3.1 s 10 Gbps Latency: < 3.4 s
Poe Capability
Up to 840 Watts
Product Type
Switches
Throughput
up to 95.2 Mpps
Memory
Memory
1 GB
Switching Capacity
128 Gbps
Ports
Input Voltage
100 - 127 / 200 - 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply
Ports
(20) RJ-45 autosensing 10/100/1000 PoE+ ports, (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports, (1) uplink module slot, (1) stacking module slot
Power
Power Consumption
2 power supplies are supported: JL086A PSU (each): 450W JL087A PSU (each): 840W
Power Supply
JL086A Aruba X372 54VDC 680W 100-240VAC Power Supply, JL087A Aruba X372 54VDC 1050W 110-240VAC Power Supply
Physical
Dimension
4.39 x 44.25 x 32.43 cm
