Specifications
General
Brand

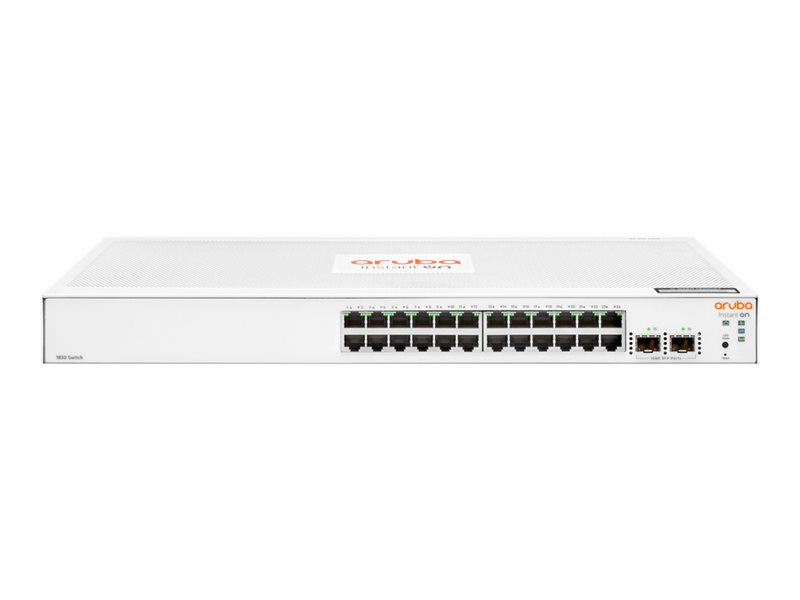

HPE Aruba
Model Name
JL812A
Model Number
JL812A
Warranty
Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
Colour
Urban Silver
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az
Country Of Origin
Non China
Management
Aruba Instant On Cloud, Web browser, SNMP Manager
Performance
Latency (100 Mbps): 5.2 -s - Latency (1 Gbps): 2.8 -s - Throughput: 38.68 Mpps - Switching capacity: 52 Gbps
Product Type
Switch
Remote Management Protocol
HTTP
Routing Protocol
IGMPv2, IGMP
Subtype
Gigabit Ethernet
Throughput
38.68 Mpps
Processor
Processor
ARM Cortex A9
Processor Brand
Intel
Memory
Jumbo Frame Support
9216 bytes
Memory
512 MB
Switching Capacity
52 Gbps
Display
Mac Address Table Size
16000 entries
Connectivity
Networking
Switch
Ports
Input Voltage
100 - 240 VAC
Ports
24 RJ-45 10/100/1000 ports, 2 SFP 1GbE ports
Power
Power
AC 100-240 V (50-60 Hz)
Power Consumption
Maximum 100-127V
Physical
Depth
21.59 cm
Dimension
21.59 x 44.30 x 4.39 cm
Height
4.39 cm
Weight
2.49 kg
Width
44.3 cm
Operating System
Enclosure Type
Rack-mountable 1U
