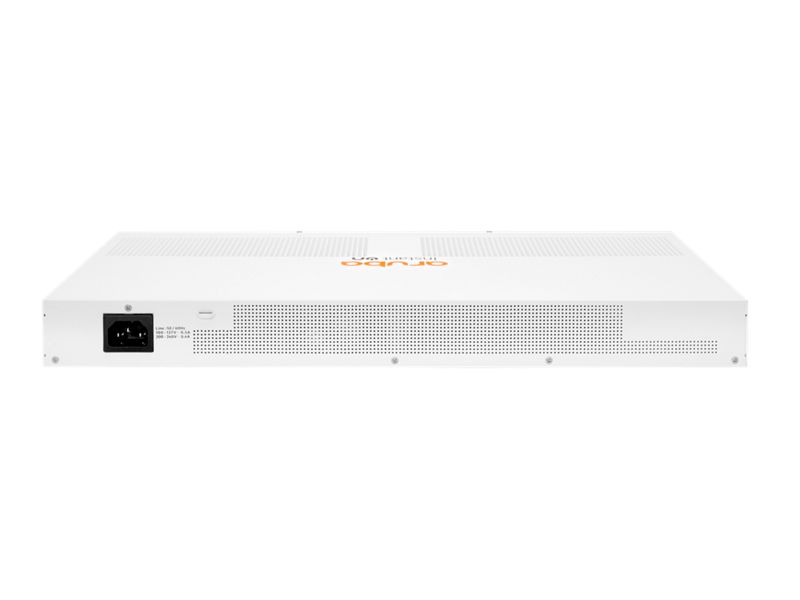

HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch - switch - 28 ports - Managed - rack-mountable
Product Highlights
- HPE Aruba Instant On 1930 24G 4SFP/SFP+ Switch - switch - 28 ports - Managed - rack-mountable
Specifications
General
Brand
HPE Aruba
Model Name
JL682A
Model Number
JL682A
Warranty
Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
Colour
Urban Silver
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Country Of Origin
Non-China
Performance
Switching capacity: 128 Gbps - Throughput: 95.23 Mpps - Latency (1 Gbps): 2.4 -s - Latency (10 Gbps): 1.3 -s
Product Type
Switches
Remote Management Protocol
HTTP
Routing Protocol
Static IP routing
Subtype
Gigabit Ethernet
Throughput
95.23 Mpps, maximum
Memory
Capacity
Link aggregation ports: 8 - IPv4 routes (static): 32 - VLANs supported: 256 - Access Control Entries (ACEs) per ACL: 480 - Packet buffer size: 1.5 MB
Jumbo Frame Support
9216 bytes
Switching Capacity
128 Gbps
Display
Mac Address Table Size
16000 entries
Connectivity
Networking
Switch
Ports
Ports
24 x 10-100-1000 + 4 x 1 Gigabit10 Gigabit SFP+
Power
Power
AC 120-230 V (50-60 Hz)
Power Consumption
22.6 W maximum, 9.3 W idle
Physical
Depth
22.15 cm
Dimension
44.25 cm x 22.15 cm x 4.39 cm
Weight
2.41 kg
Width
44.25 cm
Operating System
Enclosure Type
Rack-mountable 1U
