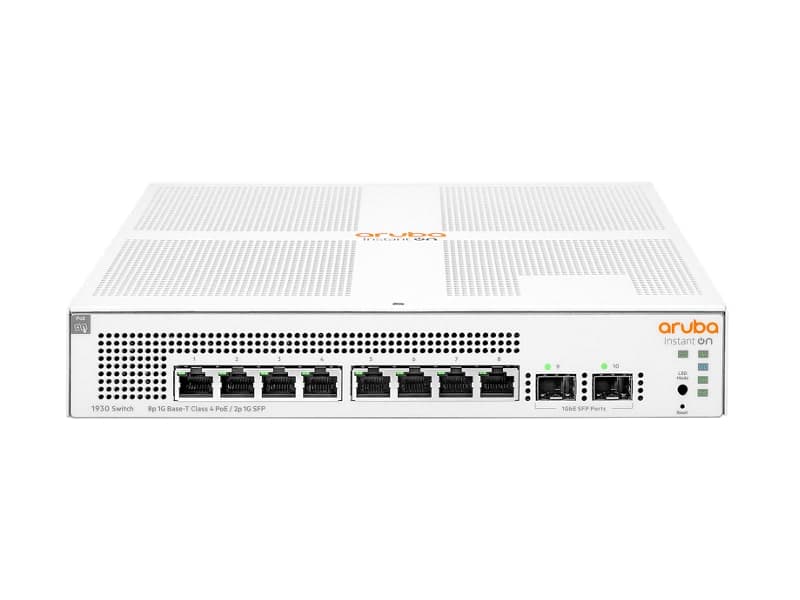

HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 8 ports - Managed - rack-mountable
Product Highlights
- HPE Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 8 ports - Managed - rack-mountable
Specifications
General
Brand
HPE Aruba
Model Name
JL681A
Model Number
JL681A
Warranty
Limited Lifetime Warranty
Colour
Urban Silver
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Country Of Origin
China
Management
Aruba Instant On Portal, Web browser, SNMP Manager
Performance
Throughput: 14.88 Mpps Switching capacity: 20 Gbps Latency (100 Mbps): 5.2 s Latency (1 Gbps): 3 s
Poe Budget
124 W
Poe Capability
124 W Class 4
Product Type
Switches
Remote Management Protocol
SNMP 3
Routing Protocol
IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP
Subtype
Gigabit Ethernet
Throughput
14.88 Mpps, maximum
Processor
Processor
ARM Cortex-A9
Memory
Capacity
Routing table entries (static): 32
Jumbo Frame Support
9216 bytes
Switching Capacity
20 Gbps
Display
Mac Address Table Size
8K entries
Connectivity
Networking
Switch
Power Over Ethernet
PoE+
Ports
Input Voltage
100 - 127 / 200 - 240 VAC
Ports
8 x 10-100-1000 (PoE+) + 2 x Gigabit SFP
Power
Power
AC 120-230 V (50-60 Hz)
Power Consumption
150.2 W maximum, 11.7 W idle
Physical
Dimension
25.4 cm x 15.95 cm x 4.39 cm
Weight
1.16 kg
Operating System
Enclosure Type
Rack-mountable 1U
