Specifications
General
Brand
HPE
Model Name

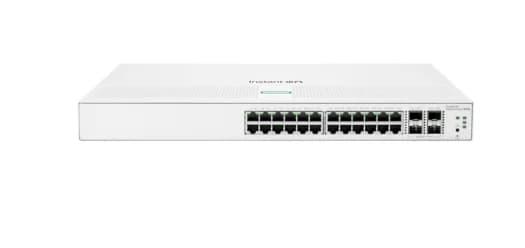

HPE Instant On 1930 24G 4SFP Switch
Model Number
JL682A
Warranty
Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
Colour
Black
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Interface
Ethernet, SFP
Operating Temperature
0°C to 40°C
Performance
Switching capacity: 128 Gbps - Throughput: 95.23 Mpps - Latency (1 Gbps): 2.4 -s - Latency (10 Gbps): 1.3 -s
Product Type
Network Switch
Remote Management Protocol
HTTP
Routing Protocol
Static IP routing
Subtype
Gigabit Ethernet
Throughput
95.23 Mpps, maximum
Memory
Capacity
24 Ports
Jumbo Frame Support
9216 bytes
Switching Capacity
128 Gbps
Display
Mac Address Table Size
16000 entries
Connectivity
Connectivity
Gigabit Ethernet
Networking
Switch
Ports
Input Voltage
100–240V AC, 50/60 Hz
Ports
24 x RJ-45 10/100/1000, 4 x SFP 1GbE
Power
Power
AC 120-230 V (50-60 Hz)
Power Consumption
22.6W maximum, 9.3W idle
Physical
Depth
22.15 cm
Dimension
4.39 x 44.25 x 22.15 cm
Weight
2.41 kg
Width
44.25 cm
Operating System
Os
Cloud-managed (Web UI / Mobile App)
Enclosure Type
Rack-mountable 1U
