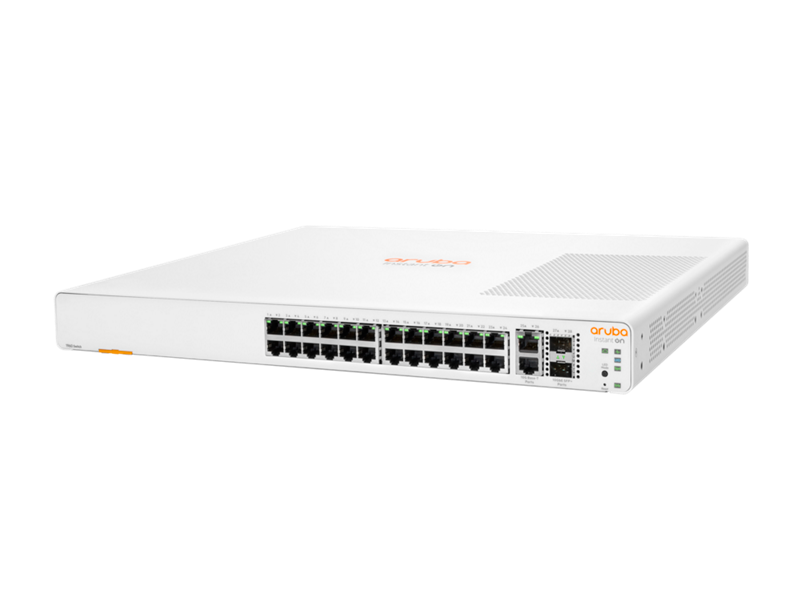

HPE Aruba JL806A Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable

HPE Aruba

HPE Aruba JL806A Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable

Networking

All Products

MPN:JL806A

SKU:HPNMB25061

Product Highlights

HPE Aruba JL806A Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable

Specifications

General

Brand

HPE Aruba

Colour

Black

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)

Performance

Throughput: 95 Mpps Switching capacity: 128 Gbps Latency (100 Mbps): 4.4 s Latency (1 Gbps): 2.2s Latency (10 Gbps): 1.1s

Product Type

Switches

Remote Management Protocol

SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS

Routing Protocol

Static IP routing

Subtype

Gigabit Ethernet

Memory

Capacity

MAC address entries: 16000 IPv4 routes (static): 32 IPv6 routes (static): 32

Jumbo Frame Support

9216 bytes

Display

Mac Address Table Size

16000 entries

Connectivity

Network Cable Type

Switch

Network Supp

HTTP

Networking

Ports

24 x 10-100-1000 + 2 x 10 Gigabit SFP+ + 2 x 100-1000-10GBase-T

Power

AC 100-240 V (50-60 Hz)

Physical

Dimension

44.25 cm x 35.05 cm x 4.395 cm

Weight

3.9 kg

Operating System

Enclosure Type

Rack-mountable 1U

Product Manuals

No manuals available for this product

Description

Product Details

High-level Gigabit with 10GbE Networking for Advanced Small Businesses

Simplify Network Deployment and Management for Small Organizations

Ease of Use with Cloud-Managed Stacking

Robust Security to Protect Your Network

Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.

Smart-managed layer 2+ Ethernet switch series ready to deploy in 24- and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.

The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.

For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.

Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
