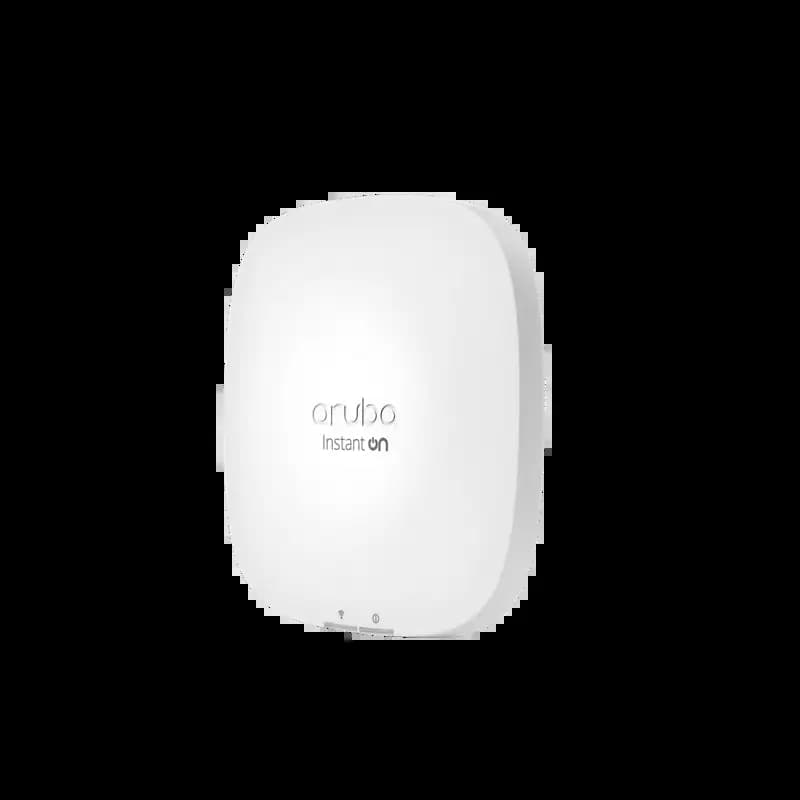

HPE Aruba S0G23A Networking Instant On Indoor Access Point 2x2 WiFi 6 (RW1) AP22
Product Highlights
- HPE Aruba S0G23A Networking Instant On Indoor Access Point 2x2 WiFi 6 (RW1) AP22
Specifications
General
Brand
HPE Aruba
Model Name
S0G23A
Model Number
S0G23A
Warranty
Aruba Instant On 2 Year warranty
Certification
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Country Of Origin
Non China
Manufacturer Warranty
Aruba Instant On 2 Year warranty
Mount Type
Ceiling/Wall-mount clip
Mounting Mode
The access point ships with a white mount clip that can attach to both wall and ceiling
Mounting Type
Ceiling/Wall-mount clip
Product Type
Access Point
Radio Coverage
Dual-radio 802.11ax 2x2 5 GHz/2.4 GHz MIMO
Whats In The Box
HPE Networking Instant On Access Point Quick Start guide Combined ceiling and wall rail mount clip Ethernet cable
Connectivity
Connectivity Standard
IEEE 802.11ax
Wifi Antenna
Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band)
Ports
Input Voltage
Power over Ethernet (POE): 802.3af (class 3), DC power (12V)
Ports
(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power
Power Consumption
Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Physical
Dimension
37x 160 x 160 mm
Weight
500 g
Product Manuals
Description
Product Details
FAQs
Frequently Asked Questions
Wi-Fi 6 is the latest generation of Wi-Fi technology, offering faster speeds, increased capacity, and improved performance compared to previous generations. It's essential for businesses that need to support a growing number of connected devices and bandwidth-intensive applications.
The AP22 is incredibly easy to set up and manage using the Instant On mobile app. The intuitive interface guides you through the process, and you can monitor and manage your network from anywhere.
The AP22 is designed to handle a high density of connected devices, making it ideal for businesses with a large number of employees or customers relying on Wi-Fi. The exact number depends on the specific usage patterns, but it can comfortably support dozens of devices.
Yes, the AP22 supports mesh networking, allowing you to easily extend Wi-Fi coverage to hard-to-reach areas without running cables.
The AP22 features WPA3 security, the latest and most advanced Wi-Fi security protocol, providing enhanced protection against cyber threats and ensuring data privacy.
