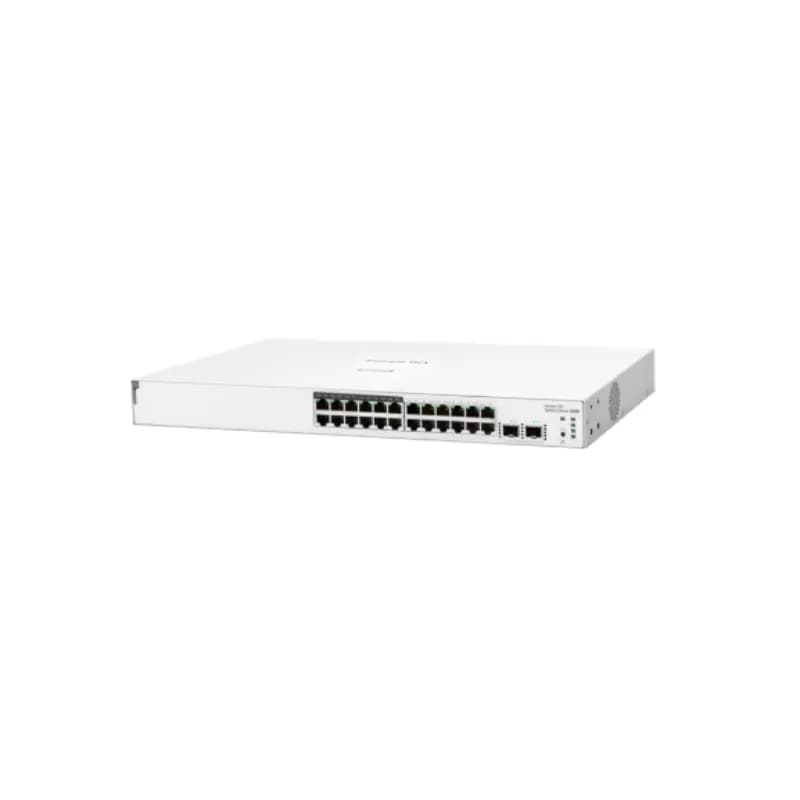

HPE JL813A, Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830
Product Highlights
- 24 Gigabit PoE+ ports for easy device powering
- 2 SFP ports for high-speed uplinks
- Smart-managed features for simple control
- Limited Lifetime Warranty by HPE
- Ideal for cost-effective SMB solutions
Specifications
General
Brand
HPE Aruba
Model Number
JL813A
Warranty
Limited lifetime warranty
Colour
Black
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Differentiator
Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses€¯looking for cost-effective solution with evolving networking demands.
Performance
Latency (100 Mbps): 5.2 -s - Latency (1 Gbps): 2.8 -s - Throughput: 38.68 Mpps - Switching capacity: 52 Gbps
Poe Budget
195 W
Poe Capability
195W
Product Type
Switch
Remote Management Protocol
HTTP
Routing Protocol
IGMPv2, IGMP
Subtype
Gigabit Ethernet
Throughput
38.68 Mpps
Memory
Jumbo Frame Support
9216 bytes
Memory
512 MB SDRAM, 256 MB flash
Switching Capacity
52 Gbps
Display
Mac Address Table Size
16000 entries
Connectivity
Networking
Switch
Power Over Ethernet
PoE+
Ports
Input Voltage
100 - 240 VAC
Ports
12 x 10-100-1000 + 12 x 10-100-1000 (PoE+) + 2 x Gigabit SFP
Power
Power
AC 100-240 V (50-60 Hz)
Power Consumption
Maximum: 100-127V: 244.6W 200-220V: 237.2W; Idle: 100-127V: 14.5W 200-220V: 13.4W
Voltage
100 - 240 VAC
Physical
Depth
25.3 cm
Dimension
44.3 cm x 25.3 cm x 4.39 cm
Weight
3.47 kg
Width
44.3 cm
Operating System
Enclosure Type
Rack-mountable 1U
