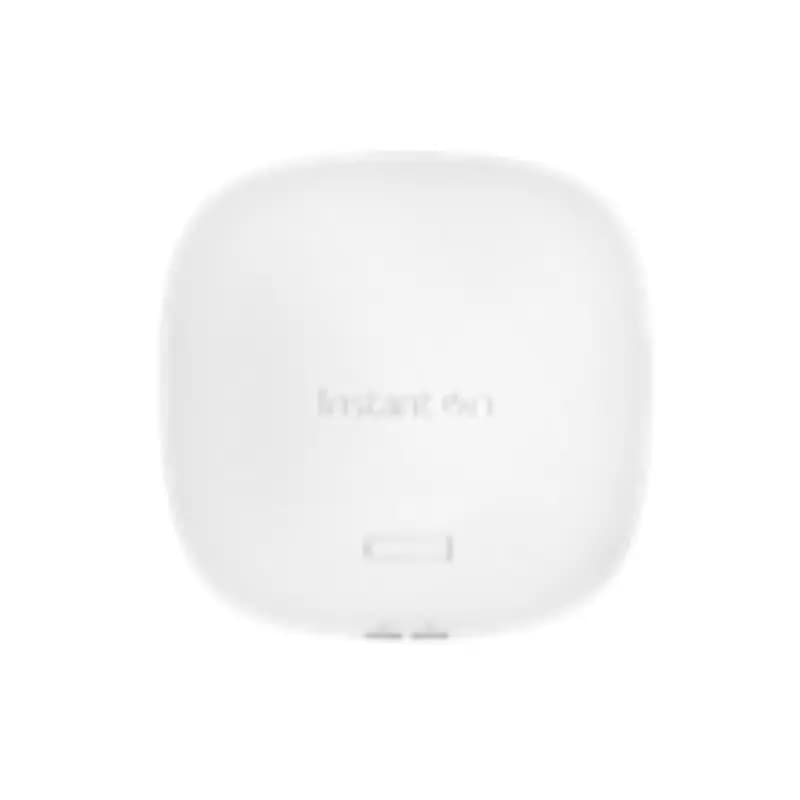

HPE R9B34A Networking Instant On Access Point Bundle with PSU (WW) AP25
Product Highlights
- Ultra-fast 802.11ax Wi-Fi 6 technology.
- Dual-radio MU-MIMO for high efficiency.
- Includes PSU
- mount kit
- and cable.
- Wi-Fi Alliance certified for reliability.
- Ceiling/Wall mount for easy deployment.
Specifications
General
Brand
HPE
Model Name
R9B34A
Model Number
R9B34A
Warranty
Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.
Certification
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Country Of Origin
Non China
Differentiator
Bundle includes access point, PSU, mount kit, and Ethernet cable
Mounting Mode
The access point ships with a white mount clip that can attach to both walls and ceilings. Mounts that match the design of the APs can be purchased separately
Product Type
Access Point
Radio Coverage
Dual-radio 802.11ax 4x4 5 GHz MU-MIMO 2x2 2.4 GHz MU-MIMO
Connectivity
Connectivity Standard
Ultra-fast 802.11ax, 4x4:4
Wifi Antenna
Antennas: Dual omni-directional 4x4 MU-MIMO Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz Maximum transmit power: 5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
Ports
Input Voltage
PoE: 802.3at (class 4) DC power (12V)
Ports
1x 2.5 GbE Base-T uplink port DC power connector Bluetooth Low Energy (BLE) LED status indicators Reset/LED control button Kensington security slot
Power
Power Consumption
Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC)
Voltage
PoE: 802.3at (class 4) DC power (12V)
Physical
Dimension
5.1 x 20.3 cm
Weight
1.18 kg
