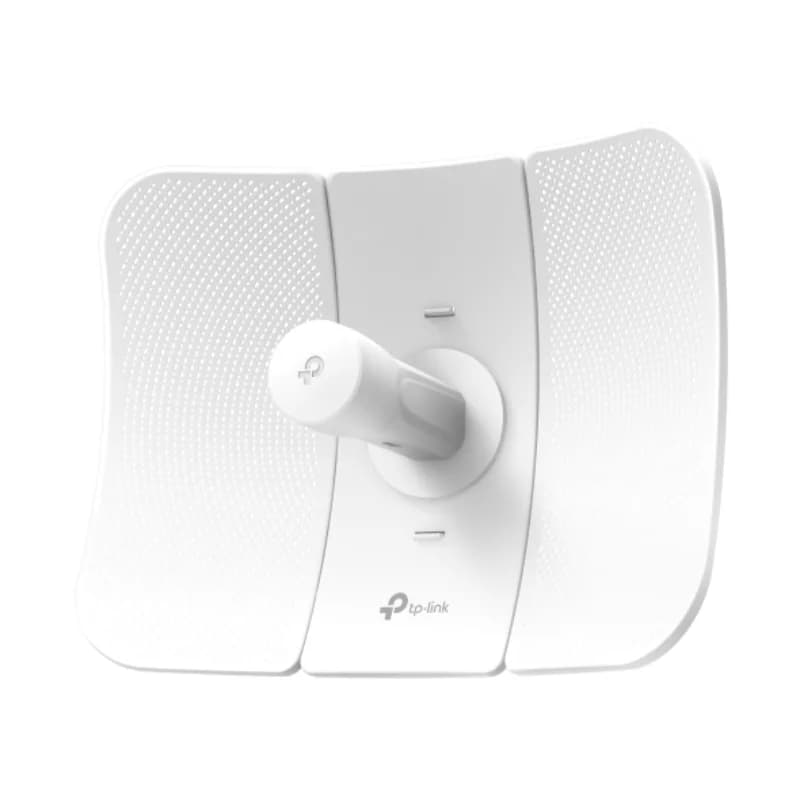

TP-Link CPE710, 5GHz, AC867Mbps, 23dBi, Gigabit Ethernet, Long Range, Outdoor, CPE Access Point
Access Point
MPN:CPE710
SKU:TPSS000084
Product Highlights
- Long Range Connectivity
- High-Speed AC867Mbps
- 23dBi Directional Antenna
- Outdoor Weatherproof
- Gigabit Ethernet
Specifications
General
Brand
TP Link
Model Name
5GHz 867Mbps 23dBi Outdoor CPE
Model Number
CPE710
Buttons
Reset
Certification
CE, FCC, RoHS
Form Factor
Outdoor CPE
Interface
1 × Gigabit Ethernet
Management
Pharos Control, Web Management
Operating Temperature
-40°C to 70°C
Poe Capability
Yes, Passive PoE
Product Type
Access Point
Protection
Outdoor weatherproof enclosure
Security
WPA/WPA2, MAC Filtering
Whats In The Box
CPE710, PoE Adapter, Power Cord, Mounting Accessories, Installation Guide
Processor
Frequency Range
5.15–5.85 GHz
Speed
Up to 867 Mbps
Connectivity
Connectivity
5 GHz Wi-Fi, Ethernet
Ports
Input Voltage
100–240V AC
Output Voltage
24V DC
Ports
1 × Gigabit Ethernet
Power
Power Consumption
13.1 W
Power Supply
24V Passive PoE Adapter
Transmit Power
≤27 dBm
Physical
Dimension
280 × 280 × 60 mm
Operating System
Enclosure Type
Plastic
Product Manuals
No manuals available for this product
Description
Product Details
- Boost your clients' wireless network performance with the TP-Link CPE710, a high-performance 5GHz AC867Mbps outdoor CPE access point designed for long-range connectivity.
- Leverage the powerful 23dBi directional antenna to establish robust, long-distance point-to-point and point-to-multipoint wireless links, perfect for extending network coverage to remote areas.
- Benefit from Gigabit Ethernet ports for high-speed data transfer, ensuring minimal latency and maximum throughput for demanding business applications.
- The outdoor weatherproof enclosure provides exceptional durability, protecting the device from harsh environmental conditions and reducing the need for frequent replacements.
- Streamline network management with both Pharos Control and Web Management interfaces, offering flexible and user-friendly configuration options for your IT teams.
- Experience reliable operation even in extreme climates, thanks to the wide operating temperature range of -40°C to 70°C, ideal for diverse deployment scenarios.
- Secure your wireless transmissions with advanced WPA/WPA2 encryption and MAC filtering, safeguarding sensitive business data against unauthorized access.
- Facilitate easy installation and integration with Passive PoE support, simplifying power delivery and reducing cabling complexity for a cleaner setup.
