Specifications
General
Brand
TP-Link
Model Name
LS109P
Model Number
LS109P
Warranty
3 Years
Form Factor
Desktop
Interface
Fast Ethernet, Gigabit Ethernet
Management
Unmanaged
Mesh
No
Operating Temperature
0°C to 40°C
Poe Capability
Yes, 65W PoE Budget
Product Type

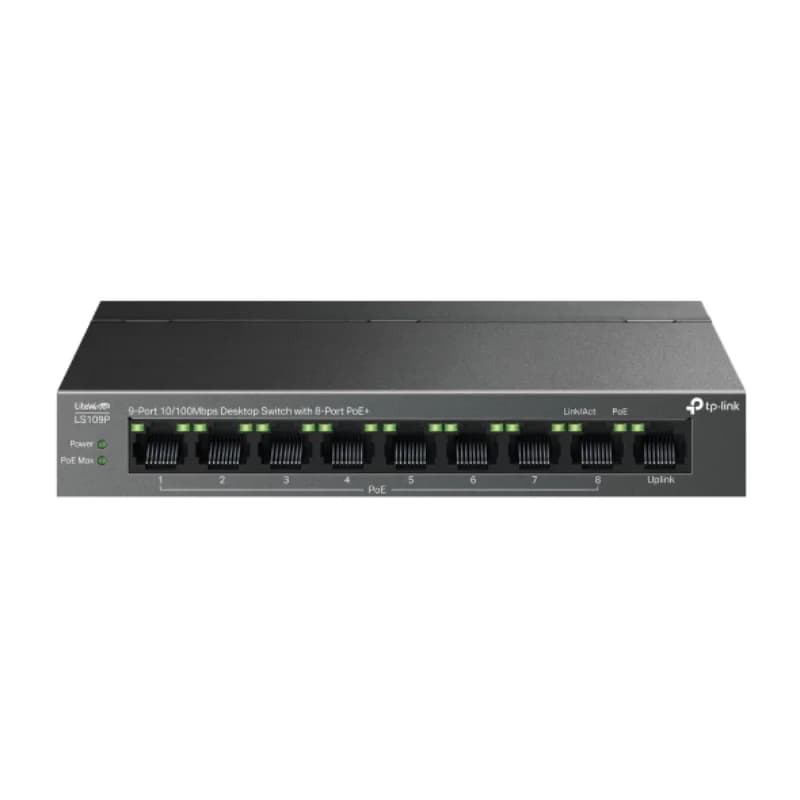

Unmanaged PoE+ Switch
Security
Port Isolation, Loop Prevention
Whats In The Box
LS109P Switch, Power Adapter, Installation Guide
Processor
Speed
10/100 Mbps
Memory
Switching Capacity
5.6 Gbps
Connectivity
Connectivity
Wired Ethernet
Ports
Ports
8 × 10/100 Mbps PoE+ Ports, 1 × Gigabit Uplink Port
Power
Power Consumption
65W PoE Budget
Power Supply
External Power Adapter
Physical
Dimension
171 × 98 × 27 mm
Product Manuals
Description
Product Details
- Boost your network's power delivery with 8 PoE+ ports, enabling seamless expansion for your clients' IP devices, enhancing their operational efficiency.
- Leverage the dedicated 10/100Mbps speed on PoE ports for cost-effective connectivity, ensuring reliable performance for standard networking needs.
- Benefit from a 5.6 Gbps switching capacity, facilitating high-speed data transfer and reducing bottlenecks for improved overall network throughput.
- Offer plug-and-play simplicity with unmanaged Layer 2 functionality, reducing installation complexity and support overhead for your customers.
- Expand your clients' network with a versatile Gigabit uplink port, ensuring smooth integration with higher-bandwidth devices and core network segments.
- Provide enhanced network stability and security with Port Isolation and Loop Prevention features, minimizing downtime and safeguarding client infrastructure.
- The compact desktop form factor offers flexibility in deployment, catering to various installation environments and client space constraints.
- With a substantial 65W PoE budget, this switch reliably powers multiple PoE devices, offering a comprehensive solution for surveillance and access control needs.
FAQs
Frequently Asked Questions
The 8 PoE+ ports allow you to simultaneously power and connect up to 8 PoE-enabled devices, such as IP cameras, access points, and VoIP phones, reducing the need for separate power outlets and cables.
Yes, with a 5.6 Gbps switching capacity and a forwarding rate of 4.17 Mpps, the LS109P ensures smooth and efficient data transfer for demanding network environments.
Absolutely. As an unmanaged Layer 2 switch, the LS109P offers plug-and-play functionality that requires no additional configuration, making it ideal for simple network deployments.
The TP-Link LS109P features one 10/100Mbps Gigabit uplink port, providing a high-speed connection to your network backbone or router for seamless data flow.
The switch has a compact desktop form factor with dimensions of 171 x 98 x 27 mm, making it suitable for various installation locations without taking up significant space.
